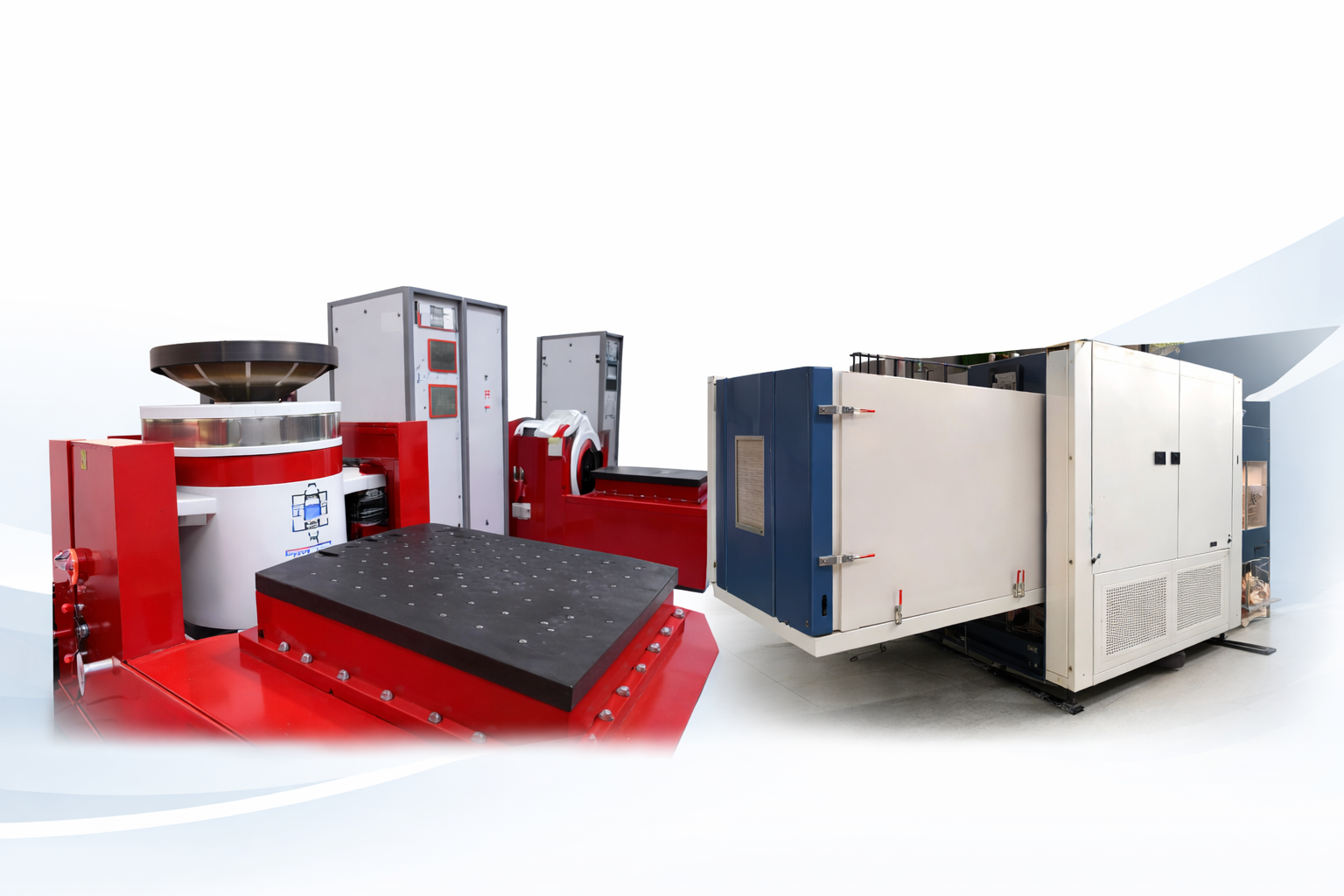

Vibration and Shock Testing with Climatic Chamber
Equipment Details / Features
Make: M/s Tarang Kinetics, Roorkee
Any Other Information
System Specifications:
Sine Force (Peak) : 3500K gf
Random Force : 3500K gf
Displacement Amplitude Range : 0 to 76mm Peak to Peak
Acceleration Leveling : 0 to 60g
Velocity in m/s : 0-1.8m/s
Horizontal Slip Table : a. Size: 800X800mm b.Insert Pattern (M/M12): 100X100mm matrix
Climatic Chamber : a.Size 1000X1000X1000mm b.Temperature Range- 400 C to 1500 C c.Humidity Range: 20% to 98% RH
