Metallurgical Microscope with Image Analyser
Equipment Details / Features

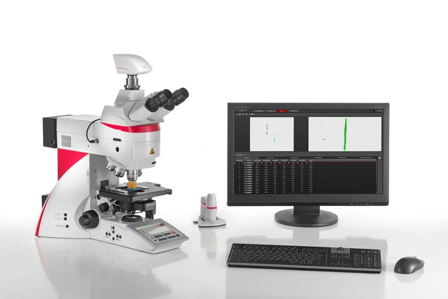

Model – Leica DM6M, Make – Leica, PC control software to control the microscope with motorized stage, Magnification – 50X, 100X, 200X, 500X and 1000X, Image capturing, processing and analyzing with color photo print facility.
Testing Conducted
Microstructure Analysis, Inclusion rating, Measure Case depth and Decarb depth and Measure grain size, Type and size of Graphite flakes in cast iron etc.
Test Standard Followed
ASM Volume 9: 2004
Images
